What is a Document Camera?
A document camera is similar to an overhead transparency projector, but offers much more flexibility and eliminates the need for the creation of overhead slides. A document camera allows users to project documents and other objects on a screen or television.
Please note this guide references the Epson DC-10s document camera. Though many functions discussed in this guide are similar to other Epson models, locations of buttons and functions may differ.

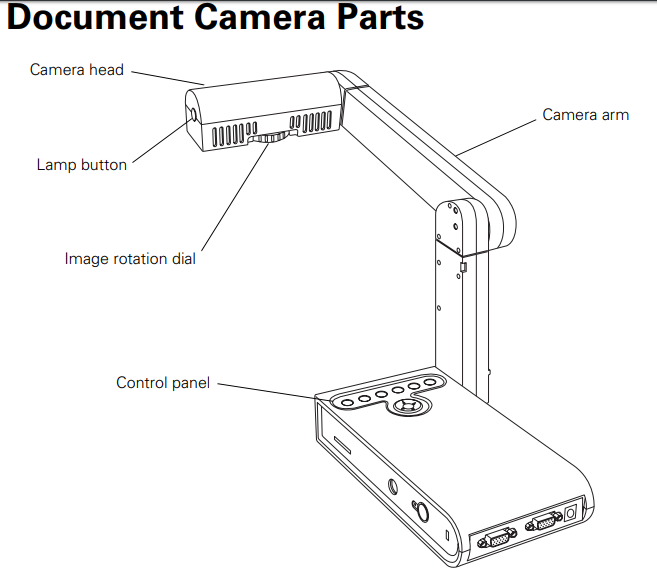

GETTING TO KNOW THE DOCUMENT CAMERA
Where the camera is housed. Can be rotated to adjust viewing angle of image.
Houses the camera head. Can be moved to adjust the height and angle of camera. Please do not push or pull the arm with too much force, as it can break.
Dial Adjusts the orientation the image is viewed at. Can be twisted 180 degrees.
Turns the built-in lamp on and off, providing more light.
Adjusts various settings on the document camera.

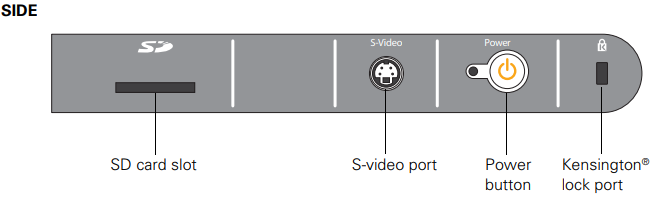

SD Card Slot
Allows use of an SD card containing JPEGs to be shown as a slideshow.
Turns the document camera on and off. A green light indicates camera is on.
Kensington Lock Port
TO TURN ON DOCUMENT CAMERA
- Turn on the Data Projector.
- Select the Computer 1 or Computer 2 input using the projector remote (input varies based on setup).
- Turn the document camera on using the Power button.
- An image will display on the projector. ADJUSTING DOCUMENT CAMERA FUNCTIONS

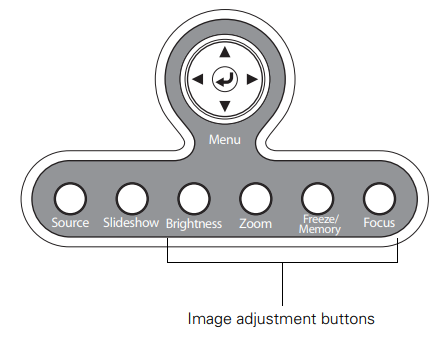

ADJUSTING DOCUMENT CAMERA FUNCTIONS
Accesses the system menu where other functions can be used and settings can be adjusted. Open menu with Enter button in the center, navigate with the Arrow keys, select an item with the Enter button.
Activates slideshow mode, which displays images saved on the Document Camera. Select desired images to be shown with Arrow and Enter keys.
Switches between the Document Camera and PC display.
Adjusts the image brightness. Press button until desired brightness is reached. Does not adjust lamp brightness.
Zooms the camera in. Press button until desired zoom is reached.
Freezes the current image. Tap button to temporarily save the image, hold button to save it into the system memory (a message will display stating image has been saved). Saving into system memory allows the image to be displayed in Slideshow mode. Tap the button again to return to normal mode.
Automatically focuses the camera, making the image clearer.
Color/Black & White
Switches displayed image between color and grayscale.
Inverts all colors, creating a negative effect.
Adjusts color warmth. If colors look washed out, use this setting to adjust. Default is Auto.
Allows images from two sources to be displayed. Can display images from camera, memory, or SD card. Use the Arrow keys to select each side desired image should be displayed on, press Enter, and select the source. When both sides have desired content selected, select Display Split Screen and press Enter. To exit Split Screen mode, press Enter.
Displays images in system memory. Similar function to Slideshow button.
Displays images on inserted SD card.
Sets menu language. Default is English
Exits system menu.
Image Source: http://files.support.epson.com/pdf/dc10s_/dc10s_ug.pdf
